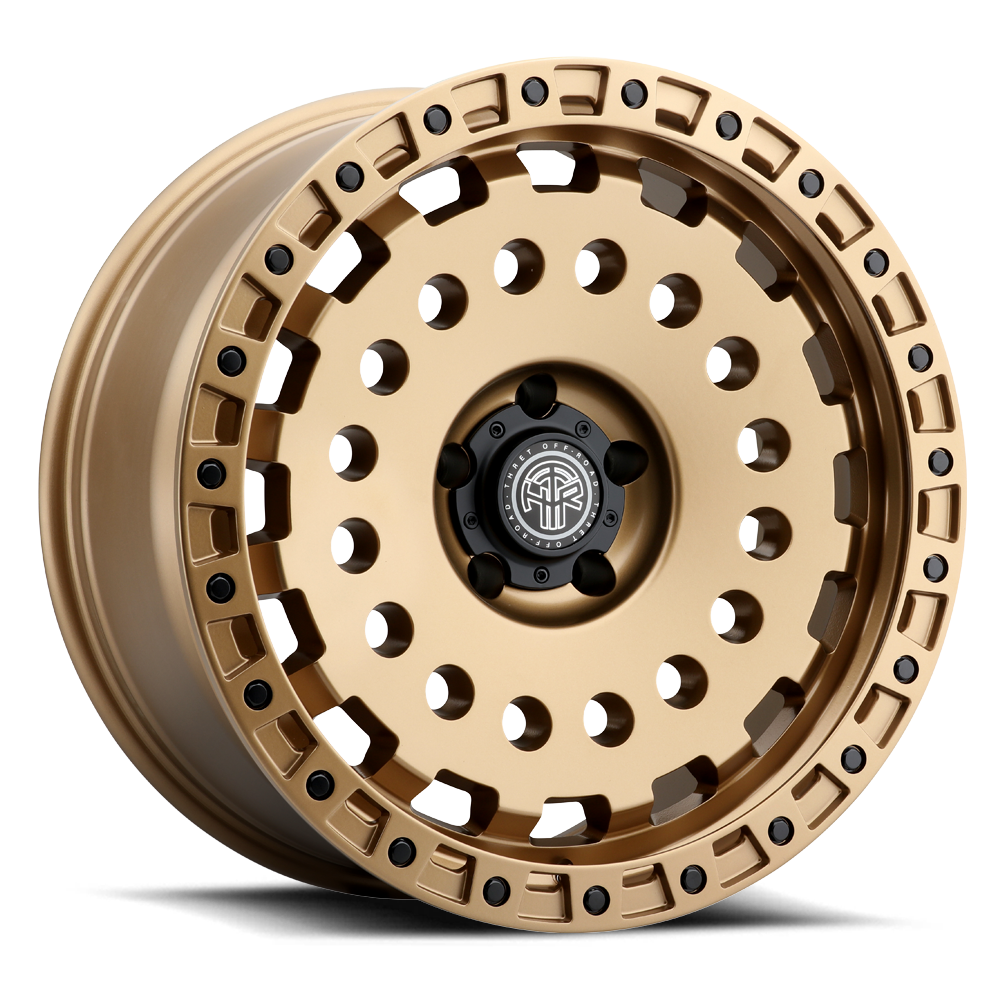

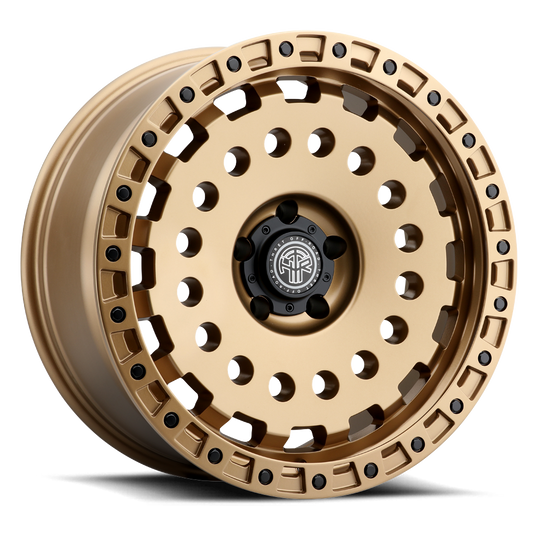

THRET OFF-ROAD 702 — BRONZE
Download JPEG

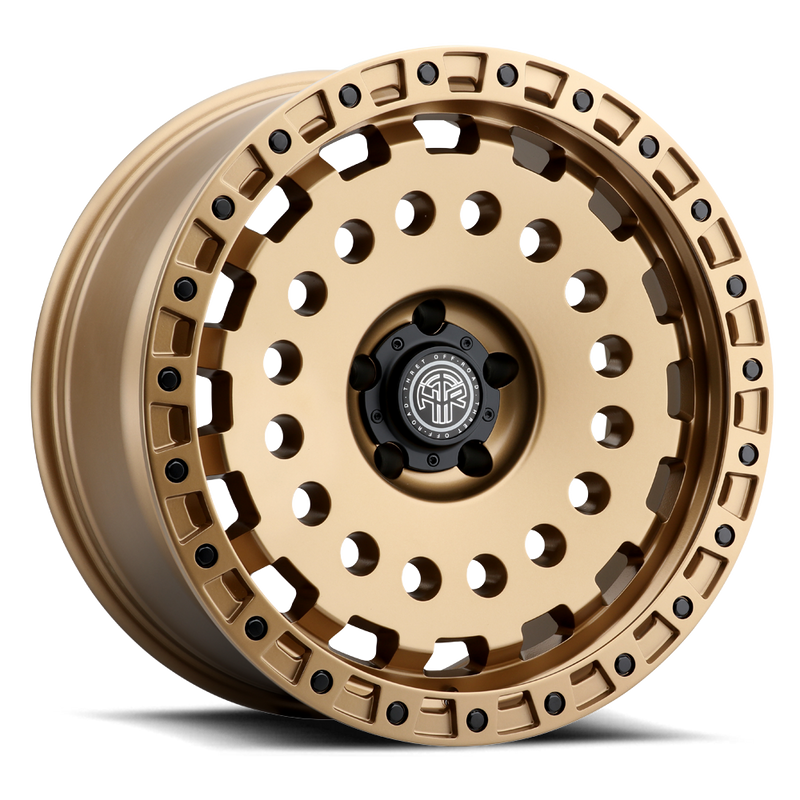

Load image into Gallery viewer, THRET OFF-ROAD 702 — BRONZE

*Pictured wheel shown is not representative of all size configurations. Center profile and lip depth will change in relation to vehicle specific fitment.

THRET OFF-ROAD

FIREWALL

BRONZE
assets/Wheel_Cross_Section_Diagram.jpg
Size
Concave
Image Part Number Size Bolt Pattern Offset

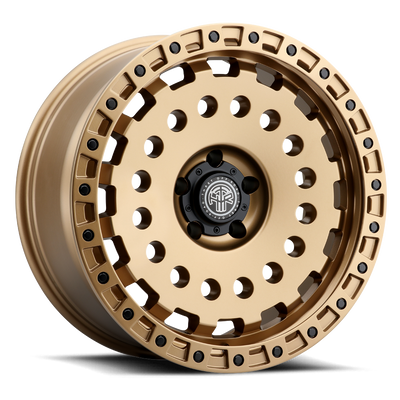

17X9 / 5/127 / Offset: -12 / 702I-1790J-12 702I-1790J-12 17X9 5/127 -12
17X9 / 6/135 / Offset: -12 / 702I-1790T-12 702I-1790T-12 17X9 6/135 -12
17X9 / 6/139.7 / Offset: -12 / 702I-1790U-12 702I-1790U-12 17X9 6/139.7 -12

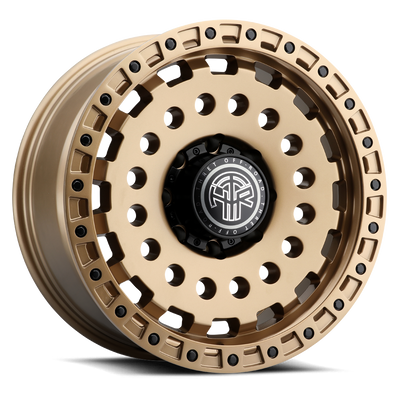

17X9 / 8/165.1 / Offset: -12 / 702I-1790V-12 702I-1790V-12 17X9 8/165.1 -12
17X9 / 8/170 / Offset: -12 / 702I-1790W-12 702I-1790W-12 17X9 8/170 -12
18X9 / 5/127 / Offset: -12 / 702I-1890J-12 702I-1890J-12 18X9 5/127 -12
18X9 / 6/135 / Offset: -12 / 702I-1890T-12 702I-1890T-12 18X9 6/135 -12
18X9 / 6/139.7 / Offset: -12 / 702I-1890U-12 702I-1890U-12 18X9 6/139.7 -12
18X9 / 8/165.1 / Offset: +0 / 702I-1890V0 702I-1890V0 18X9 8/165.1 0
20X9 / 5/127 / Offset: -12 / 702I-2090J-12 702I-2090J-12 20X9 5/127 -12
20X9 / 6/135 / Offset: -12 / 702I-2090T-12 702I-2090T-12 20X9 6/135 -12
20X9 / 6/139.7 / Offset: -12 / 702I-2090U-12 702I-2090U-12 20X9 6/139.7 -12
20X9 / 8/165.1 / Offset: +0 / 702I-2090V0 702I-2090V0 20X9 8/165.1 0
20X9 / 8/170 / Offset: +0 / 702I-2090W0 702I-2090W0 20X9 8/170 0
Part Number: 702I-1790J-12 Size: 17X9 Bolt Pattern: 5/127 Offset: -12
Part Number: 702I-1790T-12 Size: 17X9 Bolt Pattern: 6/135 Offset: -12
Part Number: 702I-1790U-12 Size: 17X9 Bolt Pattern: 6/139.7 Offset: -12
Part Number: 702I-1790V-12 Size: 17X9 Bolt Pattern: 8/165.1 Offset: -12
Part Number: 702I-1790W-12 Size: 17X9 Bolt Pattern: 8/170 Offset: -12
Part Number: 702I-1890J-12 Size: 18X9 Bolt Pattern: 5/127 Offset: -12
Part Number: 702I-1890T-12 Size: 18X9 Bolt Pattern: 6/135 Offset: -12
Part Number: 702I-1890U-12 Size: 18X9 Bolt Pattern: 6/139.7 Offset: -12
Part Number: 702I-1890V0 Size: 18X9 Bolt Pattern: 8/165.1 Offset: 0
Part Number: 702I-2090J-12 Size: 20X9 Bolt Pattern: 5/127 Offset: -12
Part Number: 702I-2090T-12 Size: 20X9 Bolt Pattern: 6/135 Offset: -12
Part Number: 702I-2090U-12 Size: 20X9 Bolt Pattern: 6/139.7 Offset: -12
Part Number: 702I-2090V0 Size: 20X9 Bolt Pattern: 8/165.1 Offset: 0
Part Number: 702I-2090W0 Size: 20X9 Bolt Pattern: 8/170 Offset: 0
