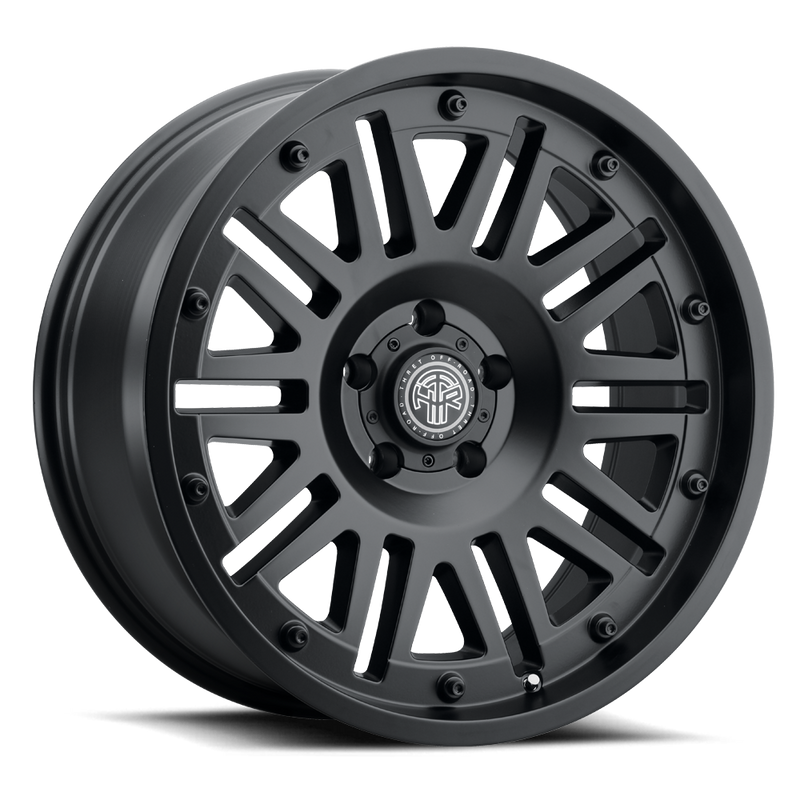

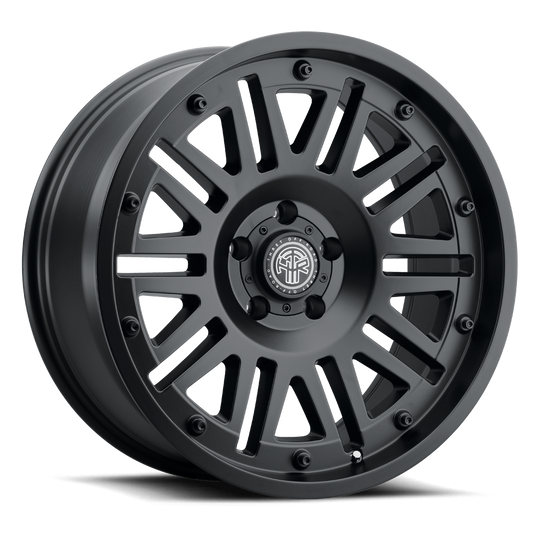

THRET OFF-ROAD 701 — SATIN BLACK
Download JPEG
Load image into Gallery viewer, THRET OFF-ROAD 701 — SATIN BLACK

*Pictured wheel shown is not representative of all size configurations. Center profile and lip depth will change in relation to vehicle specific fitment.

THRET OFF-ROAD

STORM

SATIN BLACK
assets/Wheel_Cross_Section_Diagram.jpg
Size
Concave
Image Part Number Size Bolt Pattern Offset

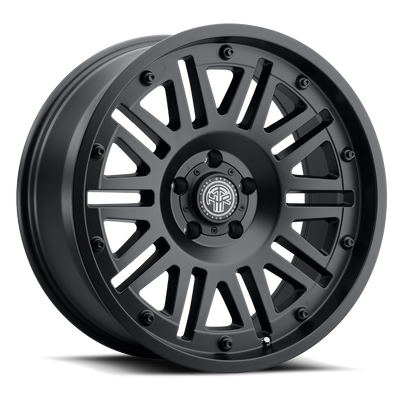

17X9 / 5/114.3 / Offset: -12 / 701G-1790F-12 701G-1790F-12 17X9 5/114.3 -12
17X9 / 5/127 / Offset: -12 / 701G-1790J-12 701G-1790J-12 17X9 5/127 -12
17X9 / 6/135 / Offset: -12 / 701G-1790T-12 701G-1790T-12 17X9 6/135 -12
17X9 / 6/139.7 / Offset: -12 / 701G-1790U-12 701G-1790U-12 17X9 6/139.7 -12
18X9 / 5/127 / Offset: -12 / 701G-1890J-12 701G-1890J-12 18X9 5/127 -12
18X9 / 6/135 / Offset: -12 / 701G-1890T-12 701G-1890T-12 18X9 6/135 -12
18X9 / 6/139.7 / Offset: -12 / 701G-1890U-12 701G-1890U-12 18X9 6/139.7 -12
20X9 / 5/127 / Offset: -12 / 701G-2090J-12 701G-2090J-12 20X9 5/127 -12
20X9 / 6/135 / Offset: -12 / 701G-2090T-12 701G-2090T-12 20X9 6/135 -12
20X9 / 6/135 / Offset: +0 / 701G-2090T0 701G-2090T0 20X9 6/135 0
20X9 / 6/139.7 / Offset: -12 / 701G-2090U-12 701G-2090U-12 20X9 6/139.7 -12
20X9 / 6/139.7 / Offset: +0 / 701G-2090U0 701G-2090U0 20X9 6/139.7 0

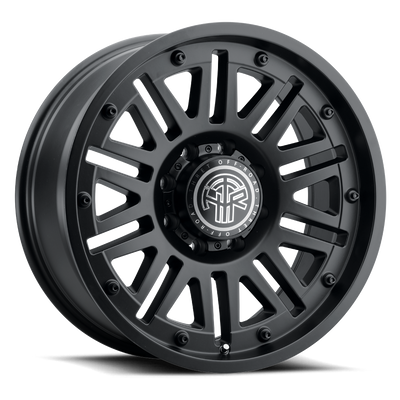

20X9 / 8/165.1 / Offset: +0 / 701G-2090V0 701G-2090V0 20X9 8/165.1 0
20X9 / 8/170 / Offset: +0 / 701G-2090W0 701G-2090W0 20X9 8/170 0
Part Number: 701G-1790F-12 Size: 17X9 Bolt Pattern: 5/114.3 Offset: -12
Part Number: 701G-1790J-12 Size: 17X9 Bolt Pattern: 5/127 Offset: -12
Part Number: 701G-1790T-12 Size: 17X9 Bolt Pattern: 6/135 Offset: -12
Part Number: 701G-1790U-12 Size: 17X9 Bolt Pattern: 6/139.7 Offset: -12
Part Number: 701G-1890J-12 Size: 18X9 Bolt Pattern: 5/127 Offset: -12
Part Number: 701G-1890T-12 Size: 18X9 Bolt Pattern: 6/135 Offset: -12
Part Number: 701G-1890U-12 Size: 18X9 Bolt Pattern: 6/139.7 Offset: -12
Part Number: 701G-2090J-12 Size: 20X9 Bolt Pattern: 5/127 Offset: -12
Part Number: 701G-2090T-12 Size: 20X9 Bolt Pattern: 6/135 Offset: -12
Part Number: 701G-2090T0 Size: 20X9 Bolt Pattern: 6/135 Offset: 0
Part Number: 701G-2090U-12 Size: 20X9 Bolt Pattern: 6/139.7 Offset: -12
Part Number: 701G-2090U0 Size: 20X9 Bolt Pattern: 6/139.7 Offset: 0
Part Number: 701G-2090V0 Size: 20X9 Bolt Pattern: 8/165.1 Offset: 0
Part Number: 701G-2090W0 Size: 20X9 Bolt Pattern: 8/170 Offset: 0
