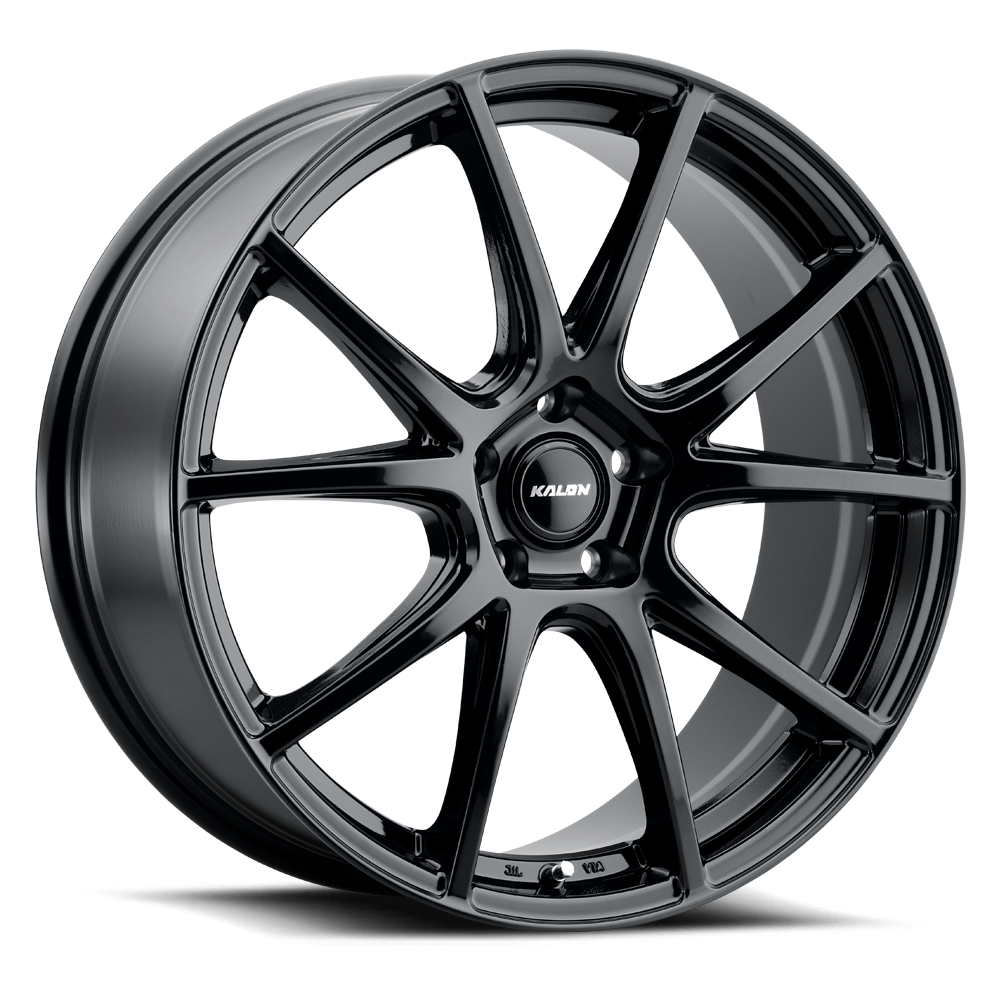

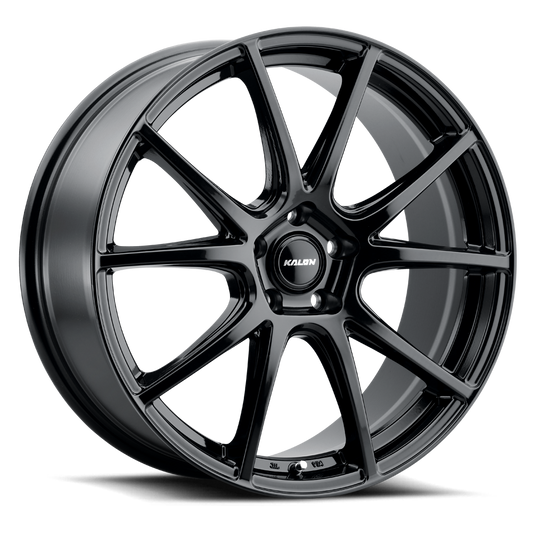

KALON WHEELS 109 — GLOSS BLACK
Download JPEG

*Pictured wheel shown is not representative of all size configurations. Center profile and lip depth will change in relation to vehicle specific fitment.

KALON WHEELS

TK3

GLOSS BLACK
assets/Wheel_Cross_Section_Diagram.jpg
Size
Concave
Image Part Number Size Bolt Pattern Offset

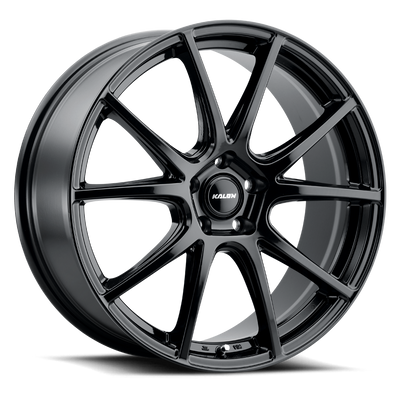

16X6.5 / 5/100 / Offset: +38 / 109A-1665A38 109A-1665A38 16X6.5 5/100 38
16X6.5 / 5/112 / Offset: +38 / 109A-1665E38 109A-1665E38 16X6.5 5/112 38
16X6.5 / 5/114.3 / Offset: +38 / 109A-1665F38 109A-1665F38 16X6.5 5/114.3 38
16X6.5 / 5/115 / Offset: +38 / 109A-1665G38 109A-1665G38 16X6.5 5/115 38
16X6.5 / 5/120 / Offset: +38 / 109A-1665H38 109A-1665H38 16X6.5 5/120 38
17X7 / 5/100 / Offset: +38 / 109A-1770A38 109A-1770A38 17X7 5/100 38
17X7 / 5/105 / Offset: +38 / 109A-1770B38 109A-1770B38 17X7 5/105 38
17X7 / 5/108 / Offset: +38 / 109A-1770C38 109A-1770C38 17X7 5/108 38
17X7 / 5/110 / Offset: +38 / 109A-1770D38 109A-1770D38 17X7 5/110 38
17X7 / 5/112 / Offset: +38 / 109A-1770E38 109A-1770E38 17X7 5/112 38
17X7 / 5/115 / Offset: +38 / 109A-1770G38 109A-1770G38 17X7 5/115 38
17X7 / 5/120 / Offset: +38 / 109A-1770H38 109A-1770H38 17X7 5/120 38
18X8 / 5/112 / Offset: +40 / 109A-1880E40 109A-1880E40 18X8 5/112 40
18X8 / 5/114.3 / Offset: +40 / 109A-1880F40 109A-1880F40 18X8 5/114.3 40
18X8 / 5/115 / Offset: +40 / 109A-1880G40 109A-1880G40 18X8 5/115 40
18X8 / 5/120 / Offset: +40 / 109A-1880H40 109A-1880H40 18X8 5/120 40
20X8.5 / 5/114.3 / Offset: +40 / 109A-2085F40 109A-2085F40 20X8.5 5/114.3 40
20X8.5 / 5/115 / Offset: +40 / 109A-2085G40 109A-2085G40 20X8.5 5/115 40
20X8.5 / 5/120 / Offset: +40 / 109A-2085H40 109A-2085H40 20X8.5 5/120 40
Part Number: 109A-1665A38 Size: 16X6.5 Bolt Pattern: 5/100 Offset: 38
Part Number: 109A-1665E38 Size: 16X6.5 Bolt Pattern: 5/112 Offset: 38
Part Number: 109A-1665F38 Size: 16X6.5 Bolt Pattern: 5/114.3 Offset: 38
Part Number: 109A-1665G38 Size: 16X6.5 Bolt Pattern: 5/115 Offset: 38
Part Number: 109A-1665H38 Size: 16X6.5 Bolt Pattern: 5/120 Offset: 38
Part Number: 109A-1770A38 Size: 17X7 Bolt Pattern: 5/100 Offset: 38
Part Number: 109A-1770B38 Size: 17X7 Bolt Pattern: 5/105 Offset: 38
Part Number: 109A-1770C38 Size: 17X7 Bolt Pattern: 5/108 Offset: 38
Part Number: 109A-1770D38 Size: 17X7 Bolt Pattern: 5/110 Offset: 38
Part Number: 109A-1770E38 Size: 17X7 Bolt Pattern: 5/112 Offset: 38
Part Number: 109A-1770G38 Size: 17X7 Bolt Pattern: 5/115 Offset: 38
Part Number: 109A-1770H38 Size: 17X7 Bolt Pattern: 5/120 Offset: 38
Part Number: 109A-1880E40 Size: 18X8 Bolt Pattern: 5/112 Offset: 40
Part Number: 109A-1880F40 Size: 18X8 Bolt Pattern: 5/114.3 Offset: 40
Part Number: 109A-1880G40 Size: 18X8 Bolt Pattern: 5/115 Offset: 40
Part Number: 109A-1880H40 Size: 18X8 Bolt Pattern: 5/120 Offset: 40
Part Number: 109A-2085F40 Size: 20X8.5 Bolt Pattern: 5/114.3 Offset: 40
Part Number: 109A-2085G40 Size: 20X8.5 Bolt Pattern: 5/115 Offset: 40
Part Number: 109A-2085H40 Size: 20X8.5 Bolt Pattern: 5/120 Offset: 40
