*Pictured wheel shown is not representative of all size configurations. Center profile and lip depth will change in relation to vehicle specific fitment.

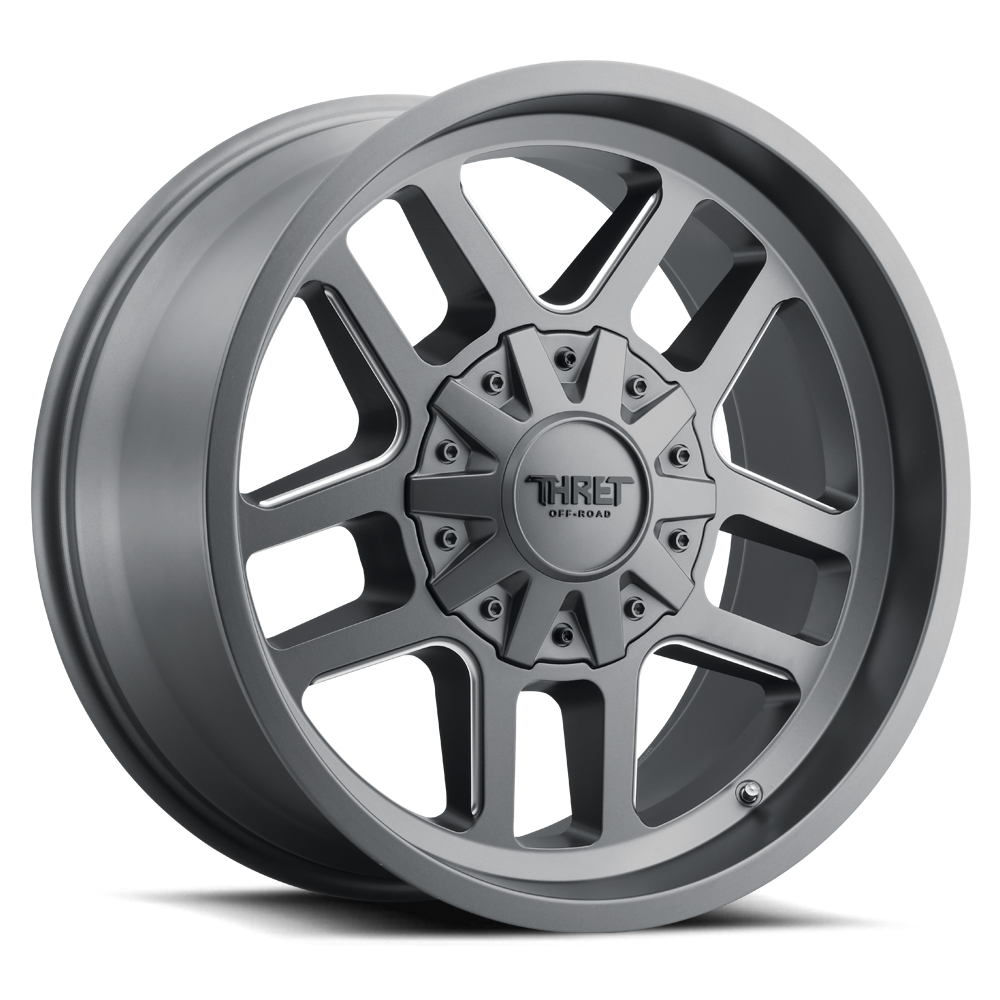

THRET OFF-ROAD

RADAR

SATIN GREY/MILLED
assets/Wheel_Cross_Section_Diagram.jpg
Size
Concave
Image Part Number Size Bolt Pattern Offset
20X10 / 5/127 / Offset: +0 / 809ND-2010JM0 809ND-2010JM0 20X10 5/127 0

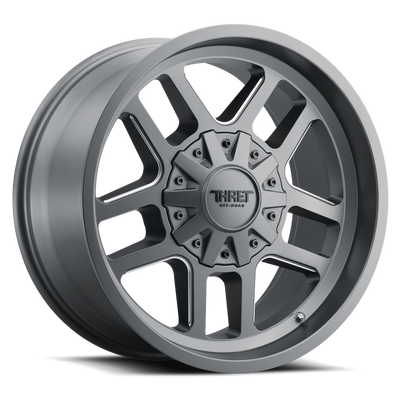

20X10 / 8/165.1 / Offset: -21 / 809ND-2010V-21 809ND-2010V-21 20X10 8/165.1 -21
20X10 / 8/170 / Offset: -21 / 809ND-2010W-21 809ND-2010W-21 20X10 8/170 -21
20X10 / 8/180 / Offset: -21 / 809ND-2010X-21 809ND-2010X-21 20X10 8/180 -21
Part Number: 809ND-2010JM0 Size: 20X10 Bolt Pattern: 5/127 Offset: 0
Part Number: 809ND-2010V-21 Size: 20X10 Bolt Pattern: 8/165.1 Offset: -21
Part Number: 809ND-2010W-21 Size: 20X10 Bolt Pattern: 8/170 Offset: -21
Part Number: 809ND-2010X-21 Size: 20X10 Bolt Pattern: 8/180 Offset: -21
