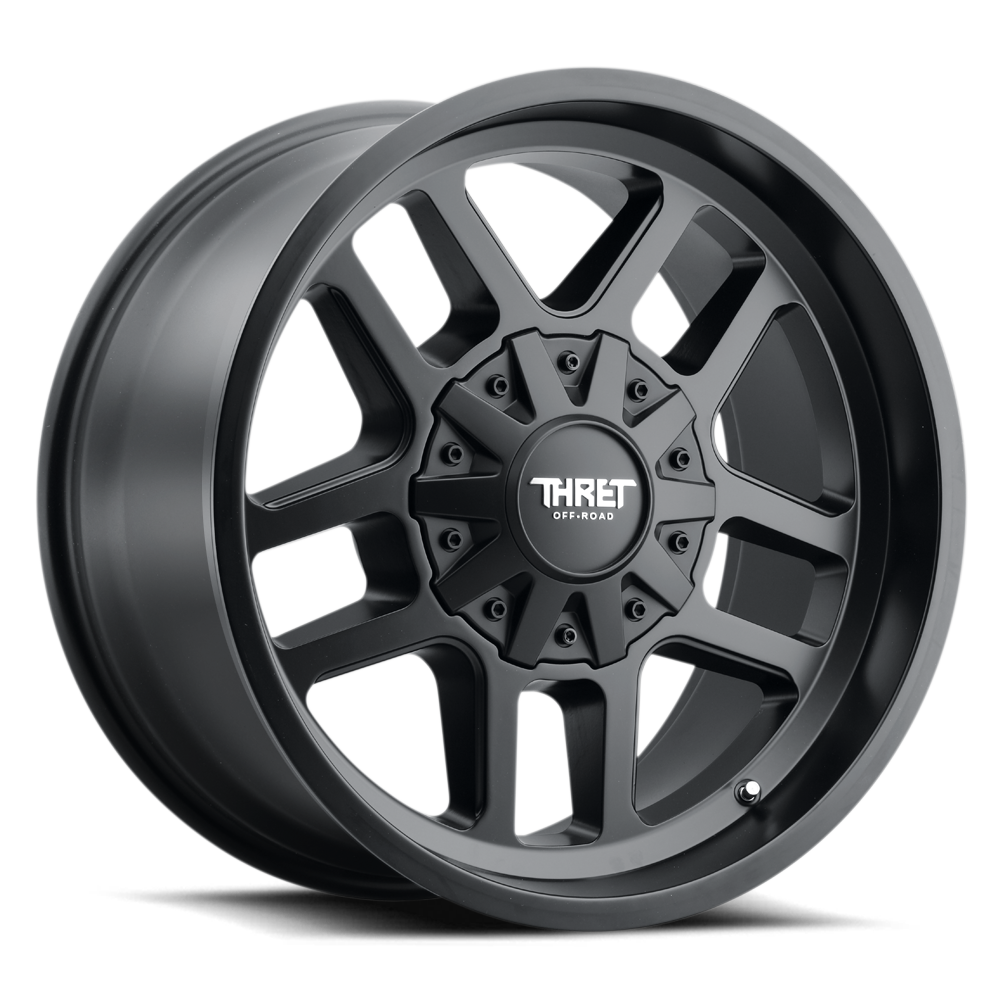

THRET OFF-ROAD

RADAR

SATIN BLACK
assets/Wheel_Cross_Section_Diagram.jpg
Size
Concave
Image Part Number Size Bolt Pattern Offset

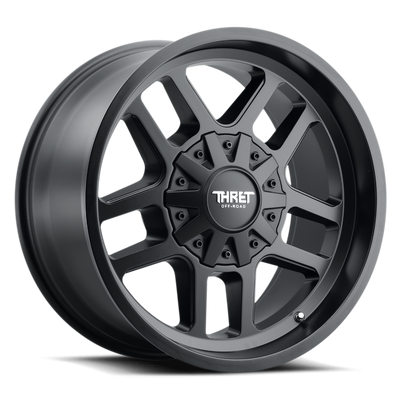

17X8.5 / 5/114.3 / Offset: -6 / 809G-1785FJ-6 809G-1785FJ-6 17X8.5 5/114.3 -6
17X8.5 / 6/135 / Offset: +6 / 809G-1785TU6 809G-1785TU6 17X8.5 6/135 6
18X9 / 6/135 / Offset: +18 / 809G-1890TU18 809G-1890TU18 18X9 6/135 18
20X10 / 5/127 / Offset: +0 / 809G-2010JM0 809G-2010JM0 20X10 5/127 0
20X10 / 6/135 / Offset: -12 / 809G-2010TU-12 809G-2010TU-12 20X10 6/135 -12
20X10 / 8/165.1 / Offset: -21 / 809G-2010V-21 809G-2010V-21 20X10 8/165.1 -21
20X10 / 8/170 / Offset: -21 / 809G-2010W-21 809G-2010W-21 20X10 8/170 -21
20X10 / 8/180 / Offset: -21 / 809G-2010X-21 809G-2010X-21 20X10 8/180 -21
20X9 / 5/127 / Offset: +18 / 809G-2090JM18 809G-2090JM18 20X9 5/127 18
20X9 / 6/135 / Offset: +18 / 809G-2090TU18 809G-2090TU18 20X9 6/135 18
17X8.5 / 8/165.1 / Offset: +18 / 809G-1785V18 809G-1785V18 17X8.5 8/165.1 18
17X8.5 / 8/170 / Offset: +18 / 809G-1785W18 809G-1785W18 17X8.5 8/170 18
17X8.5 / 8/180 / Offset: +18 / 809G-1785X18 809G-1785X18 17X8.5 8/180 18
18X9 / 8/165.1 / Offset: +18 / 809G-1890V18 809G-1890V18 18X9 8/165.1 18
18X9 / 8/170 / Offset: +18 / 809G-1890W18 809G-1890W18 18X9 8/170 18
18X9 / 8/180 / Offset: +18 / 809G-1890X18 809G-1890X18 18X9 8/180 18
20X9 / 8/165.1 / Offset: +18 / 809G-2090V18 809G-2090V18 20X9 8/165.1 18
20X9 / 8/170 / Offset: +18 / 809G-2090W18 809G-2090W18 20X9 8/170 18
20X9 / 8/180 / Offset: +18 / 809G-2090X18 809G-2090X18 20X9 8/180 18
Part Number: 809G-1785FJ-6 Size: 17X8.5 Bolt Pattern: 5/114.3 Offset: -6
Part Number: 809G-1785TU6 Size: 17X8.5 Bolt Pattern: 6/135 Offset: 6
Part Number: 809G-1890TU18 Size: 18X9 Bolt Pattern: 6/135 Offset: 18
Part Number: 809G-2010JM0 Size: 20X10 Bolt Pattern: 5/127 Offset: 0
Part Number: 809G-2010TU-12 Size: 20X10 Bolt Pattern: 6/135 Offset: -12
Part Number: 809G-2010V-21 Size: 20X10 Bolt Pattern: 8/165.1 Offset: -21
Part Number: 809G-2010W-21 Size: 20X10 Bolt Pattern: 8/170 Offset: -21
Part Number: 809G-2010X-21 Size: 20X10 Bolt Pattern: 8/180 Offset: -21
Part Number: 809G-2090JM18 Size: 20X9 Bolt Pattern: 5/127 Offset: 18
Part Number: 809G-2090TU18 Size: 20X9 Bolt Pattern: 6/135 Offset: 18
Part Number: 809G-1785V18 Size: 17X8.5 Bolt Pattern: 8/165.1 Offset: 18
Part Number: 809G-1785W18 Size: 17X8.5 Bolt Pattern: 8/170 Offset: 18
Part Number: 809G-1785X18 Size: 17X8.5 Bolt Pattern: 8/180 Offset: 18
Part Number: 809G-1890V18 Size: 18X9 Bolt Pattern: 8/165.1 Offset: 18
Part Number: 809G-1890W18 Size: 18X9 Bolt Pattern: 8/170 Offset: 18
Part Number: 809G-1890X18 Size: 18X9 Bolt Pattern: 8/180 Offset: 18
Part Number: 809G-2090V18 Size: 20X9 Bolt Pattern: 8/165.1 Offset: 18
Part Number: 809G-2090W18 Size: 20X9 Bolt Pattern: 8/170 Offset: 18
Part Number: 809G-2090X18 Size: 20X9 Bolt Pattern: 8/180 Offset: 18
