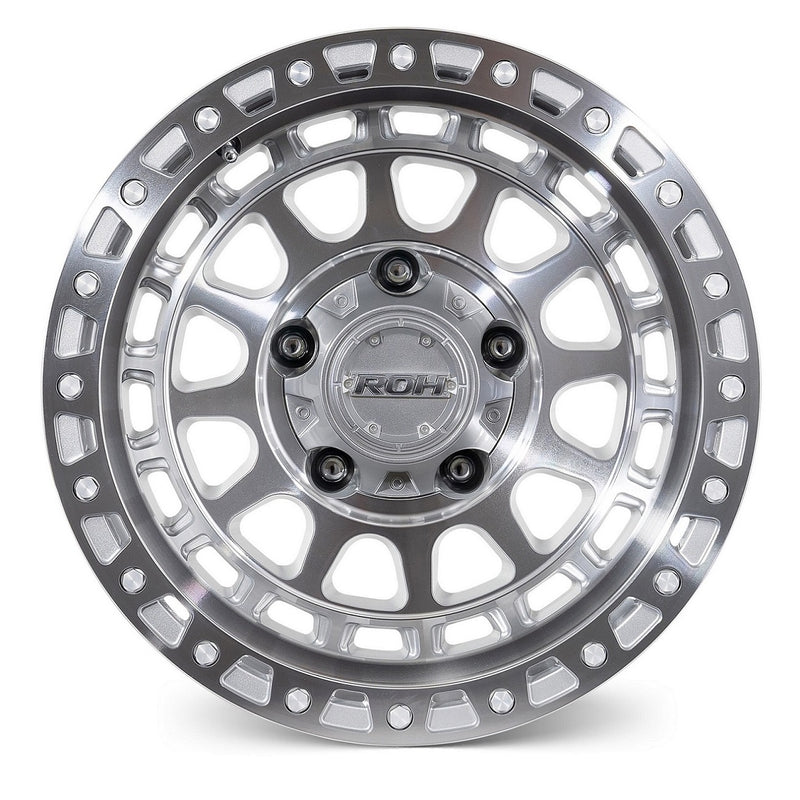

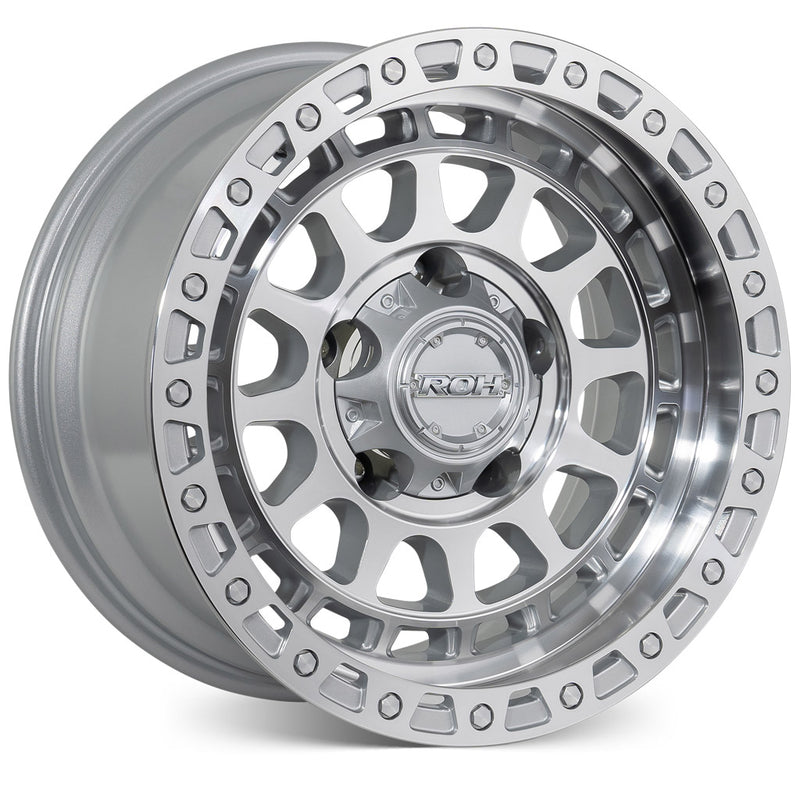

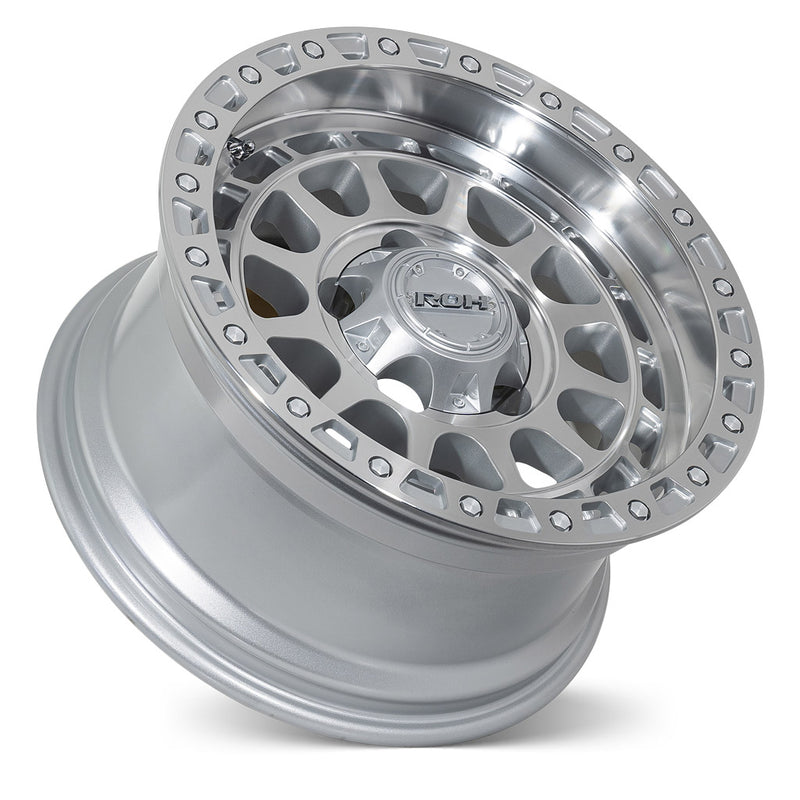

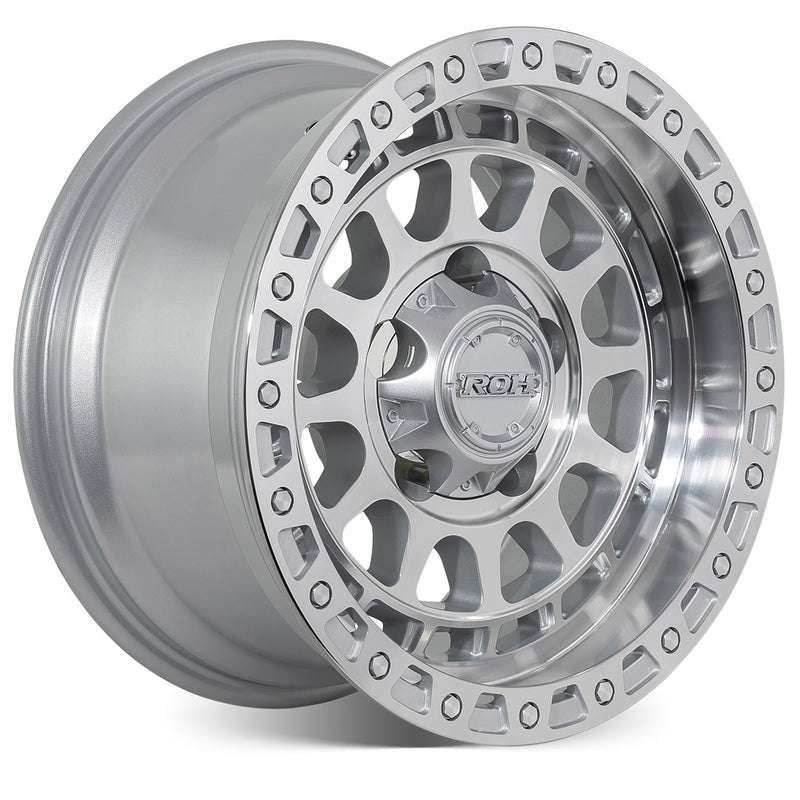

ROH Alloy Wheels ASSAULT Silver w/Machined Face
ROH Alloy Wheels ASSAULT Silver w/Machined Face
ROH Alloy Wheels ASSAULT Silver w/Machined Face
ROH Alloy Wheels ASSAULT Silver w/Machined Face
Load image into Gallery viewer, ROH Alloy Wheels ASSAULT Silver w/Machined Face
Load image into Gallery viewer, ROH Alloy Wheels ASSAULT Silver w/Machined Face
Load image into Gallery viewer, ROH Alloy Wheels ASSAULT Silver w/Machined Face
Load image into Gallery viewer, ROH Alloy Wheels ASSAULT Silver w/Machined Face

*Pictured wheel shown is not representative of all size configurations. Center profile and lip depth will change in relation to vehicle specific fitment.

ASSAULT

Silver w/Machined Face
This is a pre order item. We will ship it when it comes in stock.

New to the exclusive range of ROH Dakar Proven Wheels®, the all new ROH Assault 4×4 wheel features a Matt Bronze, Dark Tinted Machined Centre, Full Bright Machined or Full Matt Black finish coupled with anodised aluminium bolts.  Assault is available in 16”, 17” and 18” sizes.

Assault is a rally inspired deep-dish full faced design enhanced with a beadlock style matt black lip. Design details include 20 black anodised aluminium bolts that adorn the matt black outer lip, which features integrated debris release slots.

Assault features the ROH Easycleans® Baked Enamel finish providing superior salt spray performance and anti-weathering durability making it an ideal wheel for both recreational and commercial end-users.

Assault will fit a large range of the most popular 4×4 and SUV vehicles including top-selling Hilux, Prado, Ranger, D-Max, BT-50 and Triton. Assault is load-rated for LandCruiser 79 Series in 16×9 & 17×9  at 1500kg per wheel and 200 series LandCruiser in 17×9 & 18×9 at 1500kg per wheel making it an ideal choice when fitting a GVM+ suspension upgrade.

assets/Wheel_Cross_Section_Diagram.jpg
Size
Concave
Select Vehicle
Image Part Number Size Bolt Pattern Offset Load Stock On Order ETA
16X9 / 5/150 / Offset: -12 / 1690AST-125150FM110 1690AST-125150FM110 16X9 5/150 -12 1500 8
16X9 / 5/150 / Offset: -59 / 1690AST-595150FM110 1690AST-595150FM110 16X9 5/150 -59 1500 6
17X9 / 5/150 / Offset: -12 / 1790AST-125150FM110 1790AST-125150FM110 17X9 5/150 -12 1500 16
17X9 / 6/139.7 / Offset: -12 / 1790AST-126139FM110 1790AST-126139FM110 17X9 6/139.7 -12 1500 20+
17X9 / 6/139.7 / Offset: -22 / 1790AST-226139FM110 1790AST-226139FM110 17X9 6/139.7 -22 1500 8
17X9 / 5/150 / Offset: -59 / 1790AST-595150FM110 1790AST-595150FM110 17X9 5/150 -59 1500 10
17X9 / 6/139.7 / Offset: +12 / 1790AST126139FM110 1790AST126139FM110 17X9 6/139.7 12 1500 4
17X9 / 5/150 / Offset: +35 / 1790AST355150FM110 1790AST355150FM110 17X9 5/150 35 1500 0
17X9 / 6/139.7 / Offset: +40 / 1790AST406139FM110 1790AST406139FM110 17X9 6/139.7 40 1500 11
18X9 / 6/139.7 / Offset: +12 / 1890AST126139FM110 1890AST126139FM110 18X9 6/139.7 12 1500 16
18X9 / 6/139.7 / Offset: +25 / 1890AST256139FM110 1890AST256139FM110 18X9 6/139.7 25 1500 12
18X9 / 5/150 / Offset: +35 / 1890AST355150FM110 1890AST355150FM110 18X9 5/150 35 1500 17
18X9 / 6/139.7 / Offset: +40 / 1890AST406139FM110 1890AST406139FM110 18X9 6/139.7 40 1500 7
Part Number: 1690AST-125150FM110 Size: 16X9 Bolt Pattern: 5/150 Offset: -12 Load: 1500 Stock: 8 On Order: ETA:
Part Number: 1690AST-595150FM110 Size: 16X9 Bolt Pattern: 5/150 Offset: -59 Load: 1500 Stock: 6 On Order: ETA:
Part Number: 1790AST-125150FM110 Size: 17X9 Bolt Pattern: 5/150 Offset: -12 Load: 1500 Stock: 16 On Order: ETA:
Part Number: 1790AST-126139FM110 Size: 17X9 Bolt Pattern: 6/139.7 Offset: -12 Load: 1500 Stock: 20+ On Order: ETA:
Part Number: 1790AST-226139FM110 Size: 17X9 Bolt Pattern: 6/139.7 Offset: -22 Load: 1500 Stock: 8 On Order: ETA:
Part Number: 1790AST-595150FM110 Size: 17X9 Bolt Pattern: 5/150 Offset: -59 Load: 1500 Stock: 10 On Order: ETA:
Part Number: 1790AST126139FM110 Size: 17X9 Bolt Pattern: 6/139.7 Offset: 12 Load: 1500 Stock: 4 On Order: ETA:
Part Number: 1790AST355150FM110 Size: 17X9 Bolt Pattern: 5/150 Offset: 35 Load: 1500 Stock: 0 On Order: ETA:
Part Number: 1790AST406139FM110 Size: 17X9 Bolt Pattern: 6/139.7 Offset: 40 Load: 1500 Stock: 11 On Order: ETA:
Part Number: 1890AST126139FM110 Size: 18X9 Bolt Pattern: 6/139.7 Offset: 12 Load: 1500 Stock: 16 On Order: ETA:
Part Number: 1890AST256139FM110 Size: 18X9 Bolt Pattern: 6/139.7 Offset: 25 Load: 1500 Stock: 12 On Order: ETA:
Part Number: 1890AST355150FM110 Size: 18X9 Bolt Pattern: 5/150 Offset: 35 Load: 1500 Stock: 17 On Order: ETA:
Part Number: 1890AST406139FM110 Size: 18X9 Bolt Pattern: 6/139.7 Offset: 40 Load: 1500 Stock: 7 On Order: ETA:
